Miniature JBL Paragon Project

Paragon

In 1957, James B Lansing introduced a gorgeous and iconic loud speaker system called the D44000 Paragon. The JBL Paragon was a high-end stereo speaker enclosure. It contained 6 drivers in it’s spacious 9 foot enclosure; two mid-range horns, two tweeter horns, and two woofers. The enclosure was made of beautiful, contoured, stained hardwood. It is, in my opinion, as much a work of art as it is functional musical equipment. The curves, reminiscent of the 50’s contemporary design doesn’t look out of place in any modern setting.

Paragon-Diagram

The entire enclosure was designed to efficiently deliver balanced and powerful audio to a (very) large room. The two woofers set inside the cabinet act as drivers for a left and right channel horns that are made of the enclosure itself. This system is capable of immense power.

Dad and Paragon Small

My dad built one of these back in the 60’s when they retailed for $2,500.00. We all grew up in our house listening to this magnificent speaker, and have grown to love both the aesthetics and sound that it produces. With only a little more than 1000 ever produced, Paragons can fetch more than $25,000 at auction, and are very sought after by collectors.

I have always wanted to have my own Paragon, however they are generally cost prohibitive. Even building from scratch can cost multiple thousands of dollars. Beyond that, the large footprint is another limiting factor. Perhaps someday this will be achievable, but for now, I am going to have to settle for something a little more achievable; a 1/5th scale Paragon.

IMG_0143

This replica is a fully functional 4-way shelf speaker system. It has functioning horns, and replicates every nuance of the original Paragon en-miniature.

I’m exited to share some of the details of creating this miniature Paragon with the hope of bringing others to appreciate this piece of HiFi history, or perhaps just to inspire others to embark on similar creative projects.

Scaling Down

plans

The first step was scaling down all the measurements. My dad still has the original plans for the Paragon that he purchased from JBL back in the 60’s. We toyed with various sizes, and decided that 20 inches wide would be a comfortable size for bookshelf speakers without becoming too unwieldy. That worked out to be about 1:5, so that’s the scale we stuck with.

I went through the plans and scaled down all the major measurements by 5, and drew up basic plans in Adobe Illustrator. Obviously at this scale some liberties could be taken with the box interior. The exterior however is the part that we most wanted to emulate, and so we took great care to be as faithful to the original as we could while scaling down.

Horns

It was agreed that the horns, providing the iconic look of the Paragon, would be one of the most crucial elements of this project. We started from here to make sure we could get a viable result before investing time in the other aspects of the cabinetry.

The horns went through multiple redesigns and trials before finally getting a usable result. The very first horn we tried was hand sculpted from foam and then covered in a latex based paint with the intention of creating a mold from which we could cast more horns.

IMG_8404

The result was just not accurate enough, and I then took it to the next step. I modeled the horn as accurately as possible using Autocad Inventor, and then had a horn 3D printed using Shapeway’s service. The result was remarkable.

CadHorn

We took this sample and then created a mold and cast half a dozen additional horns. Unfortunately, the resulting horns with susceptible to sag over time and had to be scrapped. The 3D printed horns, though more expensive, proved to be more resilient.

IMG_8652

We had to do another redesign to make the horn fit a little better. We made test prints using a MakerBot and then ordered the final pair from Shapeways once we were convinced it was perfect.

horns

To get the gold front on the horn, we tried painting with multiple metallic paints, however each proved to not give an even luster. Finally, we bought paper-thin brass that we cut to the exact size, brushed, and coated with a protective enamel to prevent tarnishing. This was then epoxied to the front of each horn. The result looks fantastic!

IMG_0100

Legs

The legs were another trial-and-error endeavor. We cut some raw wood on a band saw to the approximate shape of the leg, then tried to shape the leg by hand, as one would do for the full sized Paragon leg. This proved to be difficult with such a small model, and we decided that a higher-tech approach should be used.

This necessitated the purchase of a small CNC machine that proved to come in handy throughout the project. Again using Autocad Inventor, I modeled an accurate representation of the leg, scaled it down to 1/5th scale, then exported the file as an STL file which we then used to make a CNC program to cut the legs out programatically.

IMG_1068

The result was once again fantastic. and made the project even that much more exciting to be working on.

leg

Prototyping

We started by experimenting with Oak. We cut our all the basic parts for out of 1/4 inch thick red oak using a table saw and band saw. The basic shape was formed with the top, bottom and two sides. These for were all joined with 45 degree mitre joints.

IMG_0406

The front reflector is made from layers of laminated veneer. We made a jig with the correct curvature and then formed the reflector using contact cement and 5 layers of plywood. This made it the correct scale thickness.

Everything was trimmed and fitted. We placed some structural pieces inside to hold the drivers that were purchased for the project. 1/5 of the original 15 inch drivers worked out to be 3 inches which is what we purchased. The drivers don’t scale linearly in all three dimensions unfortunately, and they were too deep (long). This meant having them face the wrong direction inside the cabinet.

The inside curvature was accomplished by bending some thin steel, and painting it flat black. The steel held the shape very nicely, but it gave the box a tinny, bright quality when we first tried it. This was corrected by adding a sticky sound dampening material onto the backside. It made an immediate improvement.

IMG_8634

The prototype was finished off with the mounting of the horns.

IMG_1355_edited

Final Cabinet

Once we had the measurements down, it was time to move on to using the correct wood. We bought planks and planks of quarter-sawn walnut to make the final paragon out of. All the wood planks were cut on the band saw to a .3 inch thickness.

IMG_1053

The wood was then planed and sanded down to a .25 inch thickness.

IMG_1062

We then we used a CNC machine to cut the majority of the raw parts.

IMG_1056

With the rough shapes done, we just needed to sand and prep for assembly. With so many intricacies, finding the right order for assembly was difficult!

All the wood was cut, sanded, and then filled to make the surface as smooth as possible. Additional sanding and the application of Danish Oil to color the wood completed the enclosure.

During this process we made some design changes to make it even more accurate. You could call it feature creep, and it felt like the project would never get done! The perfectionism was worth it, however, after seeing the box come together and get stained. It looks beautiful!

IMG_0102

Electronics

I bought an off-the-shelf amplifier to be used with the speakers that we chose. However scaling down the audio to such a small unit left some weird acoustical anomalies that the amplifier did not account for. There were some obvious frequencies that were masked and others that were accentuated by the size of the miniature box. We couldn’t find an amplifier with built in adjustable equalizer that would allow us to tune the frequency response curve.

IMG_1933

Ultimately, my dad designed his own using a special amplifier with 5 parametric equalizers in a single chip. The circuit board was layed out in Eagle, purchased, then we soldered on all the components and had ourselves a working amplifier small enough to fit inside the paragon. My brother programmed a PIC processor that controls the volume and equalization values.

The volume *** controls the overall volume, and when pressed in, controls the level of the subwoofer.

Speakers

The miniature Paragon is a 4 way speaker system. There is an internal housing for two 3-inch full-range speakers. These provide the main left and right audio channels.

m5n-psm

We found small tweeters that are 1/2 inch in diameter to use to power the horns. These are driven off of the main left and right channels via a passive crossover. The tweeters add to the higher end of the frequency response where the full range speakers begin to be less efficient. Additionally, it makes the Miniature Paragon more authentic and interesting.

Subwoofer

When we first listened to it, we noticed that it lacked bass. To fix this we added a 5 inch down-firing subwoofer in order to fill out the sound a little better. We created a plain 7 inch cube to house the 5″ sub, and added the same metal feet that are being used on the rear of the Paragon.

We felt it made more sense to contain the electronics in the Subwoofer, and let the paragon be tethered with only a single wire rather than with 3 (Power, Aux in, and Sub). This elicited a need for a control panel that would not look out of place.

We opted for an engraved brass plate to contain the wire connectors. The engraving was able to be accomplished using the same CNC machine that used for the woodworking. We used a diamond tip bit and drew up some artwork using Adobe Illustrator.

It took a few tries to get the speed right for the brass to be clean, but we finally did get it just right, and they turned out beautiful.

IMG_0070

After engraving, they needed to be filled with a black filler to accentuate the lettering. Finally, they needed to be coated with the same protective clear-coat used on the horns to prevent tarnishing.



Putting it all together

Finally the whole unit is completed!

IMG_0098

The resulting quality is amazing, and in some cases it’s hard to even tell that it is miniature when there are no object for comparing scale.

IMG_0115

This has truly been a challenging, but completely worth-while project!

IMG_0085

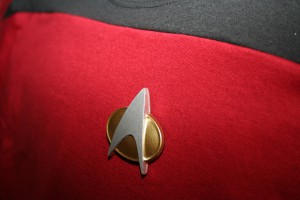

Starfleet Badges

As most self-respecting nerds are aware, Star Trek: The Next Generation is being re-released in high-definition Blu-Ray discs, one season at a time.
This show captured my imagination while growing up. I used to watch it with my father, as many young kids did. What I have always enjoyed about Star Trek are the philosophical undertones that came from Gene Roddenberry’s idealistic hopes for the future of humanity.
For the release of each season, two of the best, most memorable episodes from that season in theaters for one night only. I thought to myself that if I’m going to be seen in public going to a Star Trek viewing like this, I may as well look my best for the occasion…


I started by drawing the basic profile of the TNG combadge in illustrator. I used screenshots from the show and pictures on Google to get the shape as accurate as possible.


I then Imported the shape into Autocad Inventor and extruded and shaped the model to look how they appear I the show. Once I had the model finalized, I took an STL file and brought it into Carve 3D software and prepared a tool path for use on our CNC machine using a 1/8th inch round nose bit. The bit is too large for this scale, and so not all the detail seen in the 3D model is in turn translated to the wood model.


The next step was to cut it out then sand it down in preparation for painting. I primed it and used gold metal and silver paint to give it its final appearance. Wood is not ideal for this type of replica because the of the grain, but the result is still pretty good I think.


I tried multiple woods and found the best result with ash. I also tried 3D printing on a Maker Bot but found that the step resolution produced very rough models that were unacceptable. To finish the badges off, they were fitted with a strong rare earth magnet, allowing them to be affixed to clothing.

Paper iPad/iPhone Stand

I’ve seen some pretty inexpensive iPad docks, but I thought I could take the next step to make one that is virtually free! I made this little beauty out of a single piece of paper. Well, it actually took 3 pieces of paper in order to work out all the bugs, but at $0.015 a sheet, this thing ran me a little less than a nickel!

Admittedly, this was originally designed for just iPhones (seeing as I haven’t purchased an iPad yet), but surprisingly worked well for iPads too, as the following image demonstrates!

Its very simple to make your own!
  • Download the template
  • Print it out (preferably on thick paper!)
  • Cut it out (and scoring it makes it easier too)
  • Glue it
  • Enjoy!

There you have it! Download the file and get to it, and make your own sub-nickel iPhone/iPad stand!
